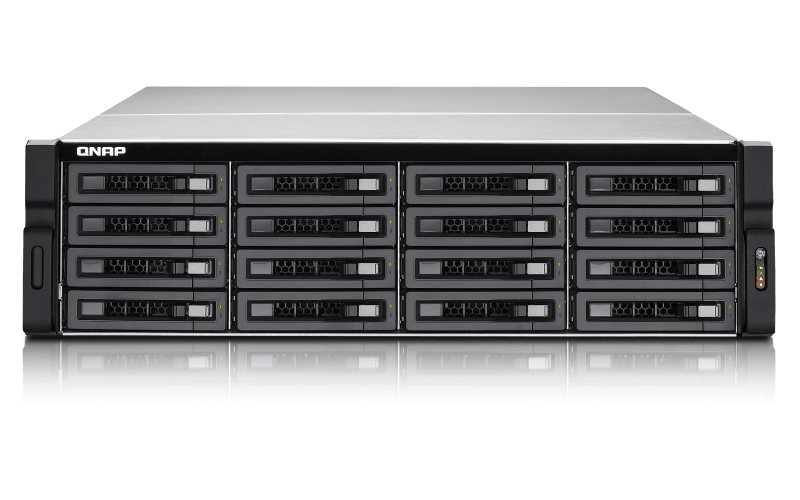

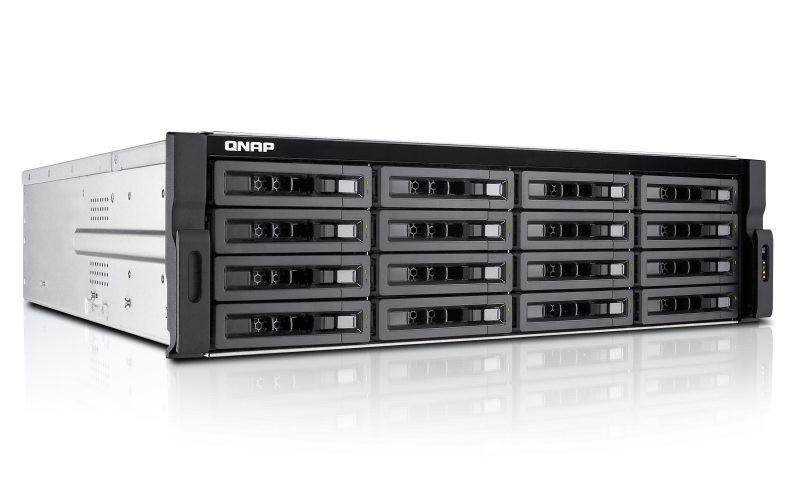

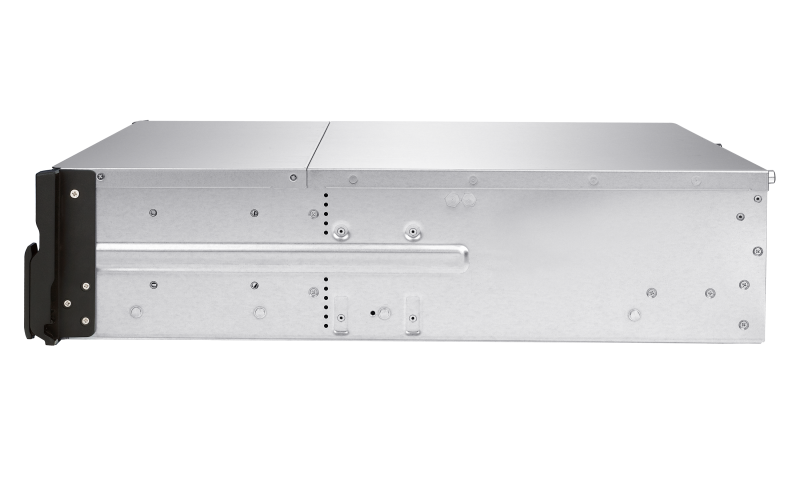

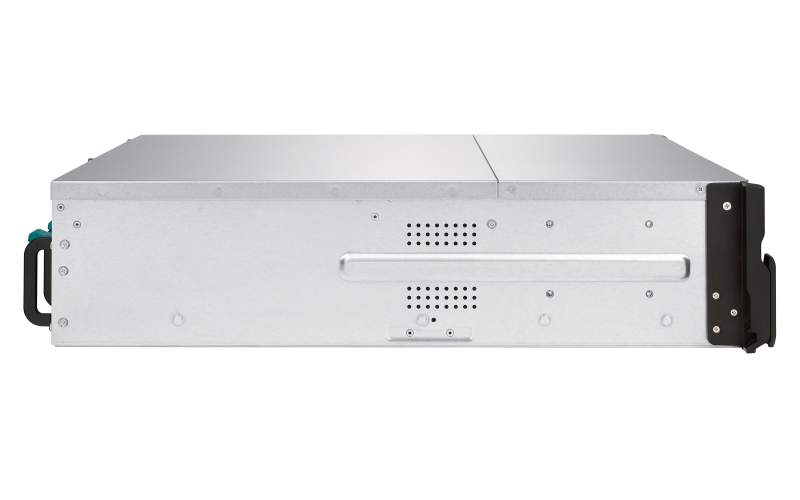

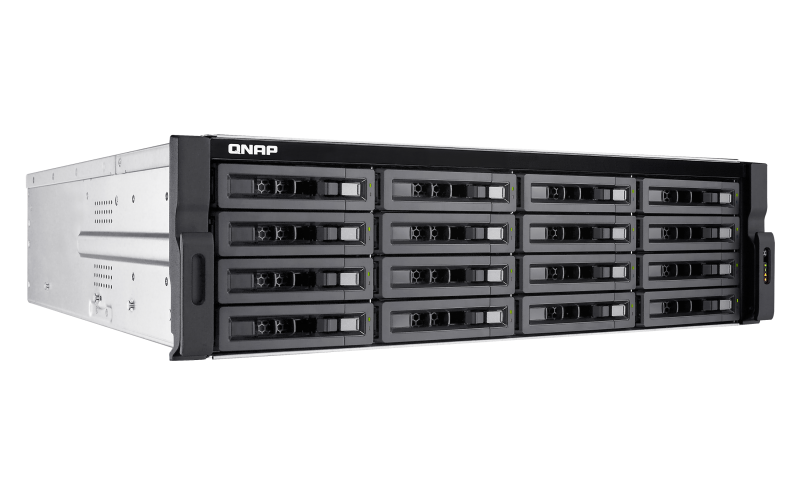

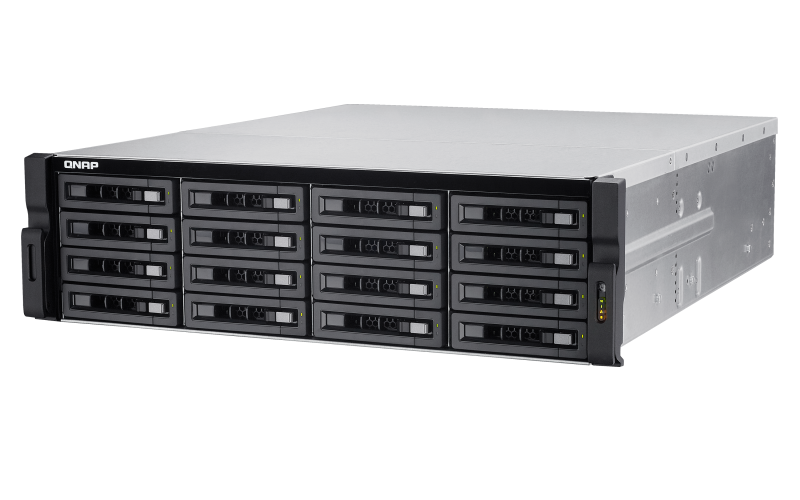

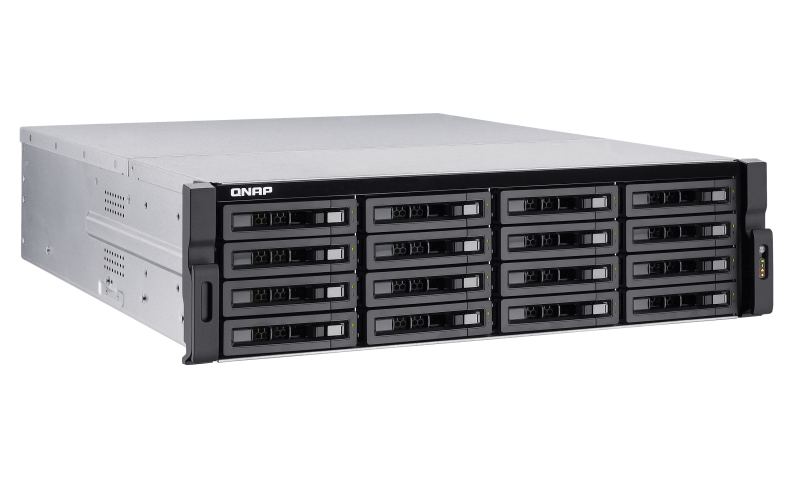

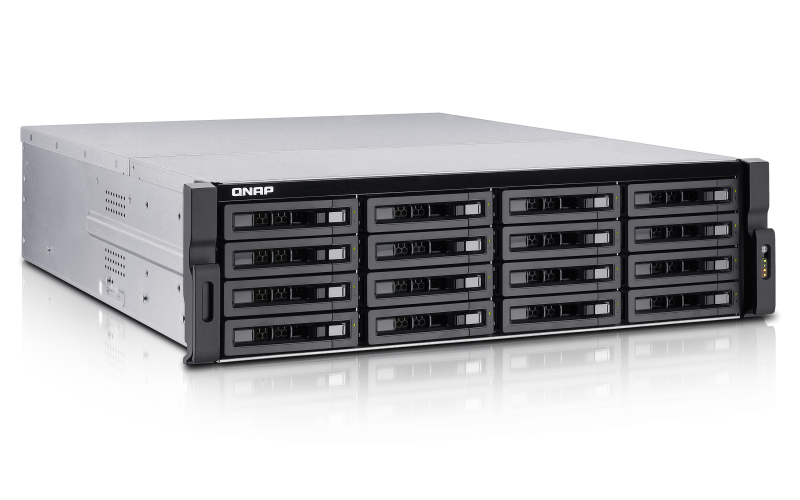

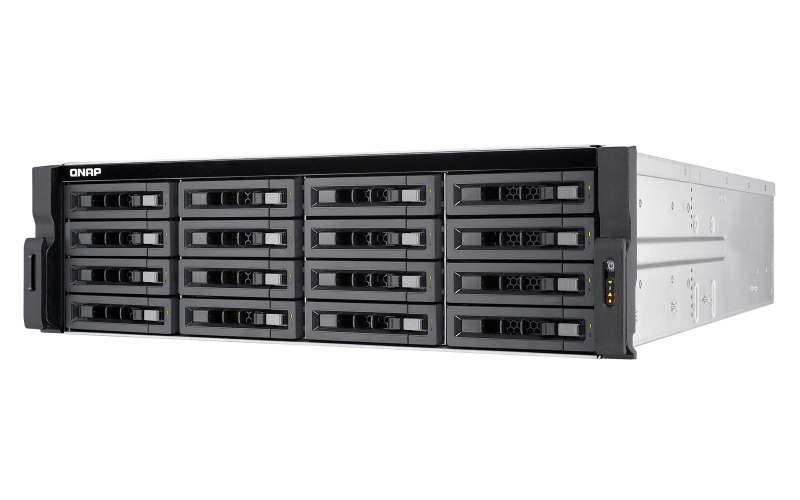

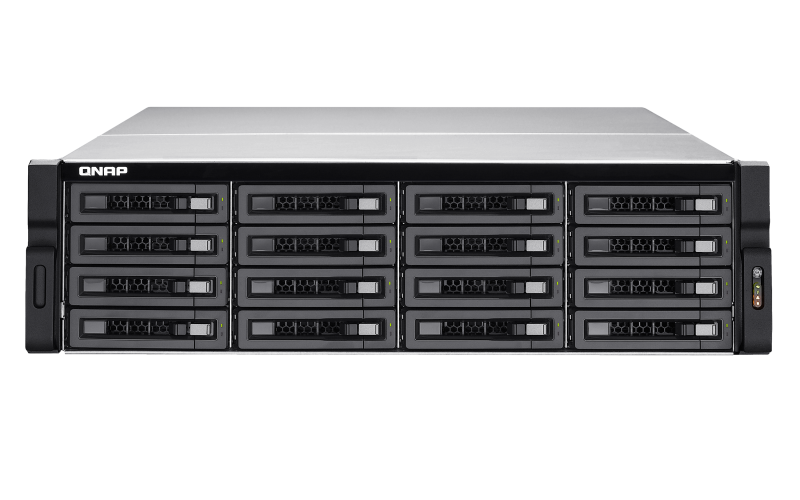

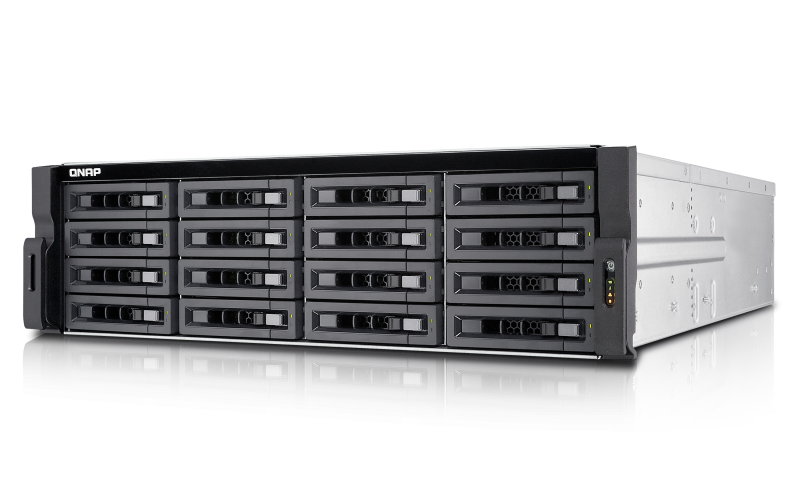

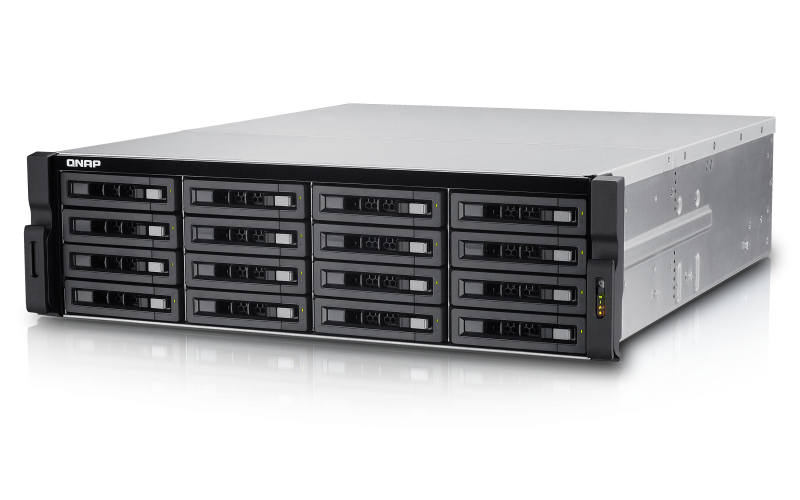

TVS-EC1680U-SAS-RP R2
內建雙 10GbE埠，支援 16 顆 12Gbps SAS 硬碟的高效能 NAS / iSCSI / IP-SAN 統一儲存設備
| TVS-EC1680U-SAS-RP-8GE-R2 | 下载产品规格书 |
| TVS-EC1680U-SAS-RP-16G-R2 | 下载产品规格书 |
| 處理器 | Intel® Xeon® E3-1245 v3 四核心 3.4 GHz 處理器、E3-1246 v3 四核心 3.5 GHz 處理器或相容的 E3-1200 v3 家族處理器 |
| 處理器架構 | 64 位元 x86 |
| 浮點運算 | 支持 |
| 加密引擎 | (AES-NI) |
| 系統記憶體 | 8 GB UDIMM DDR3 ECC (2 x 4 GB) |
| 最大記憶體 | 32 GB (4 x 8 GB) |

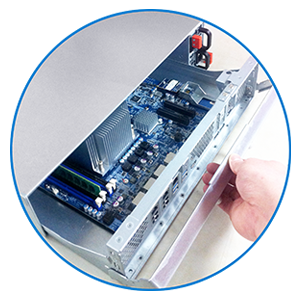

| 記憶體插槽 | 4 個 DDR3 Long-DIMM 當記憶體擴充至 28GB 以上時，需移除原本的 4GB 記憶體模組。 記憶體模組的安裝及 NAS 機型的相容性說明請參考 QNAP RAM 模組安裝手冊 |
| 快閃記憶體 | 512 MB (DOM 適用於雙 OS) |

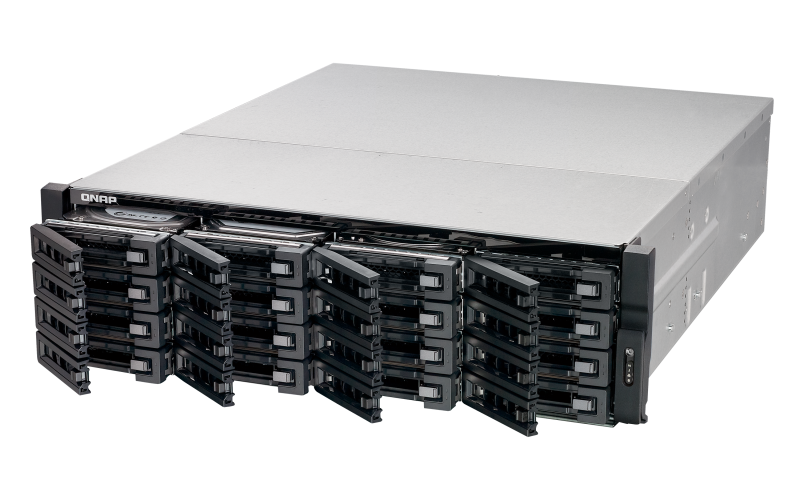

| 硬碟插槽數 | 16 個 3.5 吋 SAS 12Gb/s、6Gb/s 標準系統出貨不包含硬碟。 如需硬碟相容性列表，請造訪 https://www.qnap.com/compatibility/ |
| 支援硬碟類型 | 3.5 吋 SAS/SATA 硬碟 2.5 吋 SAS/SATA 硬碟 2.5 吋 SAS/SATA 固態硬碟 |
| 熱插拔支援 | 支持 |

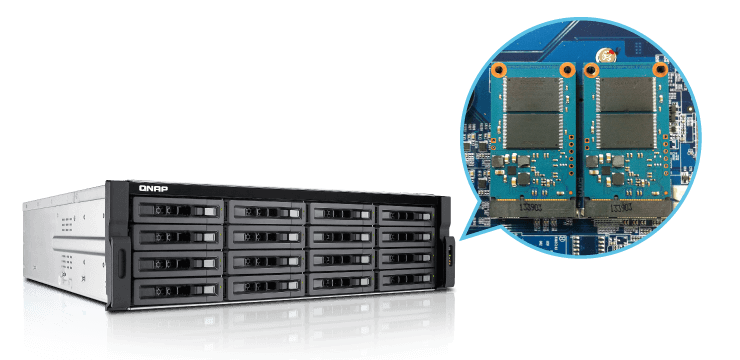

| mSATA 插槽 | 2 個 (mSATA 快閃記憶體模組為隨附配備) 如需選購 mSATA 快閃記憶體，請造訪 http://shop.qnap.com/ |
| 固態硬碟快取加速支援 | 支持 |

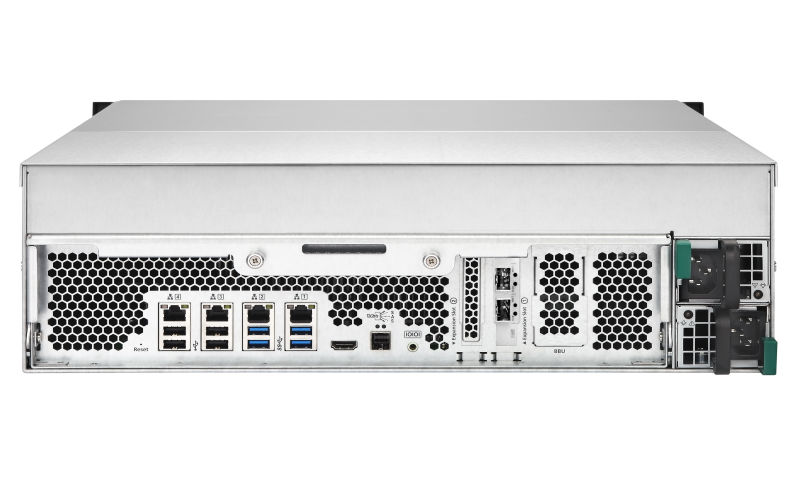

| Gigabit 乙太網路埠 (RJ45) | 4 相容網路介面卡列表請造訪 |
| 10 Gigabit 乙太網路埠 | 2 個 10GbE SFP+ |
| 巨幀封包 | 支持 |
| PCIe 擴充槽 | 2 插槽 1：PCIe Gen 3 x8 插槽 2：PCIe Gen 3 x4 PCIe Gen3 (x8) 插槽已安插 10GbE 網路擴充卡 |
| USB 2.0 埠 | 4 |
| USB 3.2 Gen 1 port | 4 |
| HDMI 輸出 | 1 |
| 機型 | 3U 機架式 |
| LED 指示燈 | 硬碟 1-16、狀態、10 GbE、網路、儲存空間擴充埠狀態 |
| 按鈕 | 電源、系統重置 |
| 尺寸 (高x寬x深) | 130 × 442.5 × 530.5 mm |
| 重量 (淨重) | 18.3 kg |
| 重量 (毛重) | 24.18 kg |
| 工作溫度 | 0 - 40 °C (32°F - 104°F) |
| 相對濕度 | 5~95% RH (不凝結)，濕球：27˚C (80.6˚F) |
| 電源供應器 | 備援 / 熱抽換 ATX 電源供應器，輸入： 50-60 Hz 100-127V~/ 8.5A 200-240V/ 4.2A 輸出：650W |
| 耗電量：硬碟休眠模式 | 136.57 W |
| 耗電量：運作模式，典型值 | 212.51 W 含 16 顆 HITACHI HUS724020ALA640 硬碟 |
| 風扇 | 4 個智慧型風扇 (80mm) |
| 噪音值 | 35.5 db(A) |
| 系統警示 | 蜂鳴器 |
| 同時連線 (CIFS) 數目上限 | 1500 |
注意：請僅使用 QNAP 記憶體模組來維持系統的效能與穩定性。若 NAS 裝置有多個記憶體模組，請使用相同規格的 QNAP 模組。
警告：使用不支援的模組可能會降低效能、造成錯誤，或使作業系統無法啟動。
* 噪音值測試環境：
參考標準: ISO 7779 ; 依 Bay 數裝載最多數量硬碟 ; 以 Bystander Position 測量 ; 取機器運行中前方一米處平均數據
威聯通科技得保留隨時修改的權利，恕不另行通知。
警告：使用不支援的模組可能會降低效能、造成錯誤，或使作業系統無法啟動。
* 噪音值測試環境：
參考標準: ISO 7779 ; 依 Bay 數裝載最多數量硬碟 ; 以 Bystander Position 測量 ; 取機器運行中前方一米處平均數據
威聯通科技得保留隨時修改的權利，恕不另行通知。
| Operating SystemQTS (QNAP Turbo NAS System) | Disk ManagementQNAP Flexible volumeThin-provisioning with space reclamation supportedOnline Volume ExpansionOnline Storage Pool Expansion (via QNAP RAID expansion enclosure)Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 50, 60RAID Hot Spare and Global Hot SpareOnline RAID Capacity Expansion and Online RAID Level MigrationBad Block Scan and Hard Drive S.M.A.R.T.Bad Block RecoveryRAID RecoveryBitmap Support |
| Supported ClientsApple Mac OS 10.7 or laterLinux and UNIXMicrosoft Windows 7, 8, and 10Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016 | Power ManagementWake on LAN*Internal Hard Drive Standby ModeScheduled Power on/offAutomatic Power on after Power RecoveryUSB and Network UPS Support with SNMP Management |
| Supported BrowsersMicrosoft Internet Explorer 10+Mozilla Firefox 8+Apple Safari 4+Google Chrome | Access Right ManagementBatch Users CreationImport/Export UsersUser Quota ManagementLocal User Access Control for CIFS, AFP, FTP, and WebDAV,Subfolder Permissions Support for CIFS/SMB, AFP, FTP, and Web File Manager |
| Multilingual SupportChinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish | Domain Authentication IntegrationMicrosoft Active Directory (AD)LDAP ServerLDAP ClientDomain Users Login via CIFS/SMB, AFP, FTP, and File Station |
| File SystemInternal Hard Drive: EXT4External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ | Web AdministrationMulti-window, Multi-tasking based System ManagementMovable Icons and Personalized DesktopSmart Toolbar and Dashboard for Neat Display on System StatusSmart Fan ControlDynamic DNS (DDNS)SNMP (v2 & v3)Resource MonitorNetwork Recycle Bin for File Deletion via CIFS/SMB and AFPAutomatic CleanupFile Type FilterComprehensive Logs (Events & Connection)Syslog ClientFirmware Live UpdateSystem Settings Backup and RestoreRestore to Factory DefaultMobile App Qmanager for Remote Monitoring |
| NetworkingTCP/IP (IPv4 & IPv6: Dual Stack)Quad Gigabit NICs with Jumbo Frame*FailoverMulti-IP SettingsPort Trunking/NIC Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-TLB and Balance-ALB)Optional Dual-port 10 GbE and 1 GbE Network Expansion Cards*Service Binding Based on Network Interfaces*Proxy Client, Proxy ServerDHCP Client, DHCP ServerProtocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSCUPnP & Bonjour DiscoveryUSB Wi-Fi Adapter Support | File ServerFile Sharing across Windows, Mac, and Linux/UNIXProtocols: CIFS/SMB, AFP, NFS, FTP/FTPS, HTTP/HTTPS (Web File Manager), WebDAVWindows ACLAdvanced Folder Permission for CIFS/SMB, AFP, FTPShared Folder Aggregation (CIFS/SMB) |
| SecurityIP Filter & Policy-based Automatic IP BlockingNetwork Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFPEncrypted Access: HTTPS, FTP with SSL/ TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rsync over SSH)CIFS Host Access Control for Shared FoldersAntivirus ProtectionAES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)**AES 256-bit External Drive Encryption*Importable SSL CertificateInstant Alert via E-mail, SMS, Beep, and LCD Panel* | File StationSupports ISO Mounting (Up to 256 ISO Files)Creates and Sends Download Links for Sharing Public Files with Expiration Time and Password ProtectionDrag-n-drop Files via Chrome and Firefox BrowsersPhoto, Music, and Video Preview and Playback Empowered by Built-in Transcoding TechnologyFile Compression (ZIP or 7z)Advanced SearchMobile App: Qfile for File Browsing and Management |
| Powerful All-in-one server | |
| FTP ServerFTP over SSL/TLS (Explicit)Concurrent Connections: Max 256Passive FTP Port Range ControlFTP Bandwidth & Connection ControlSupports FXP & Unicode | Syslog ServerCentralized Log Monitoring and ArchivingImmediate Email AlertsSupports Log Filtering |
| Backup StationRemote Replication Server (over Rsync)Real-time Remote Replication (RTRR) to another QNAP NAS or FTP ServerWorks as Both RTRR Server & Client with Bandwidth ControlReal-time & Scheduled BackupEncryption, Compression, File Filter, and Transfer Rate LimitationEncrypted Replication between QNAP NAS ServersDesktop Backup by QNAP NetBak Replicator for WindowsApple Time Machine Support with Backup ManagementData Backup to Multiple External Storage DevicesSynchronizes with Cloud Storage: Amazon S3, ElephantDrive, Dropbox, and Google Cloud StorageThird Party Backup Software Support: Veeam Backup & Replication, Acronis TrueImage, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc. | Print ServerMax No. of Printers: 3Supports Internet Printing ProtocolPrint Job Display and ManagementIP-based and Domain Name-based Privilege ControlSupports Apple Bonjour Printing |
| iSCSI (IP SAN)iSCSI TargetMulti-LUNs per TargetUp to 256 Targets/LUNs CombinedSupports LUN Mapping & MaskingBlock-based LUNThin-provisioned LUN with Space Reclamation supportedOnline LUN Capacity ExpansionSupports SPC-3 Persistent ReservationSupports MPIO & MC/SiSCSI LUN Backup, One-time Snapshot, and RestoreiSCSI Connection and Management by QNAP Finder (Windows)Virtual Disk Drive (via iSCSI Initiator)Stack Chaining MasterMax No. of Virtual Disk Drives: 8 | Database ServerBuilt-in MySQL ServerWeb-based Management via phpMyAdmin |
| Server Virtualization & ClusteringVMware vSphere (ESX/ESXi 4.x, 5.x)VMware VAAI for iSCSI and VAAI for NASvSphere Plug-inCitrix XenServer (6.0)Windows Server 2012 Hyper-VSupports Microsoft ODXQNAP SMI-S provider for Microsoft SCVMMWindows Server 2012 Failover Clustering | RADIUS ServerCentralized Account Management and Authentication for Network AccessSupports 802.1x Security AuthenticationTFTP Server with PXE Booting (Read-only) |
| Virtualization StationSupport up to 8 Virtual Machine (32GB RAM is required) creating to run an operating system such as Windows, Linux, Unix.VM import from Virtual AppliancesVM export into a virtual appliance in OVF / QVM formatVM cloneVM snapshotHTML5 based shared remote console | VPN ServerSecure Remote Access: PPTP & OpenVPN VPN servicesRemote Access to Other Resources on Local NetworkMax No. of Clients: 300 |
| Storage Plug & Connect via Windows Qfinder Pro by QNAPCreate and Map Shared FoldersCreate and Connect to iSCSI Target/LUN | Surveillance StationSupports over 1,400 IP CamerasIncludes 8 Free Camera LicenseUp to 80 Camera Channels via Additional License Purchase*Intelligent Video Analytics (IVA) for Advanced Video SearchVisual Aid by E-mapSurveillance Client for MacMobile App: Vmobile (iOS and Android) |
| myQNAPcloud ServicePrivate Cloud Storage and SharingFree Host Name Registration (DDNS)Auto Router Configuration (via UPnP)myQNAPcloud Link for Remote Access without Complicated Router SetupmyQNAPcloud Connect for Easy VPN Connection (Windows VPN Utility) | AntivirusSupports ClamAV (free) and McAfee (optional purchase ) virus scanner.Protection against Viruses, Trojans, and Other ThreatsFree Virus Databases Update on Manual or Scheduled BasisMultiple Scan Tasks (Max: 64, Concurrent: 5) with Custom Folder Selection and Scheduled ScanningEmail Notification upon Task Completion or Virus DetectionQuarantines or Deletes Infected Files |
| QsyncSyncs Files among Multiple Devices through the NASOption for Not Removing Files on the NAS during SynchronizationSelective SynchronizationShares Securely with SSLTeam FolderShares Files by Links via E-mailUploads Photos or Videos to Qsync Folder Automatically via QfileRestores Files from Network Recycle BinFile Name Conflict PolicyOption for Filter SettingsPrivilege Control for Qsync UsersSupports Windows & Mac OS | APP CenterAdd New Features by Online Installation of over 90 Official and Community Software |
| Web ServerHTTP/HTTPS ConnectionsSupports WebDAV ConnectionSupports Virtual Host (Max: 32)Importable SSL Certificate | Add-ons(The actual available software add-ons may vary depending on the NAS platform) |
* This feature may vary according to different models. Design and specifications are subject to change without notice. | |
 |  |  |
| TVS-EC1680U-SAS-RP R2 | 乙太網路線纜 x 4 | 電源線 x 2 |
 |  |  |
| 十字螺絲 x 64 (適合 3.5 吋硬碟) | 十字螺絲 x 64 (適合 2.5 吋硬碟) | 快速安裝手冊 |
