威联通网络存储 TS-EC880U R2

內建10GbE 高速網路傳輸

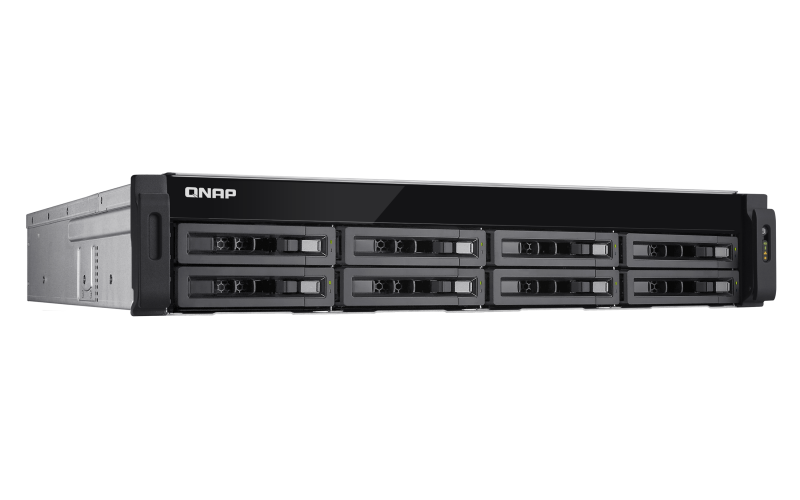

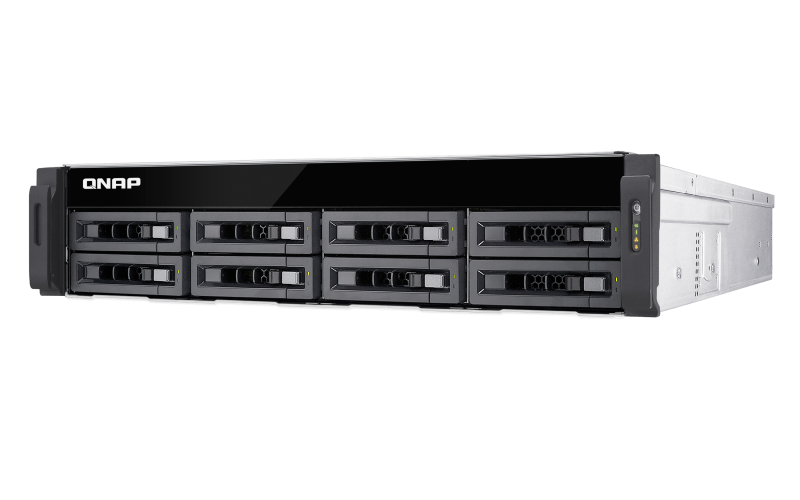

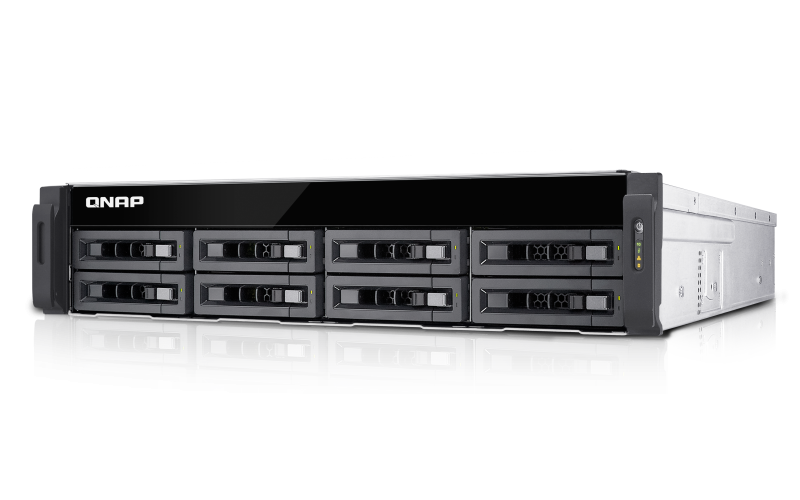

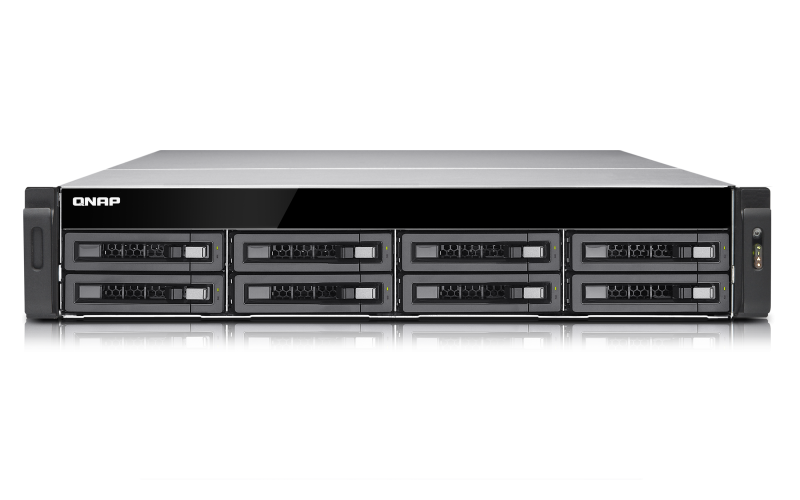

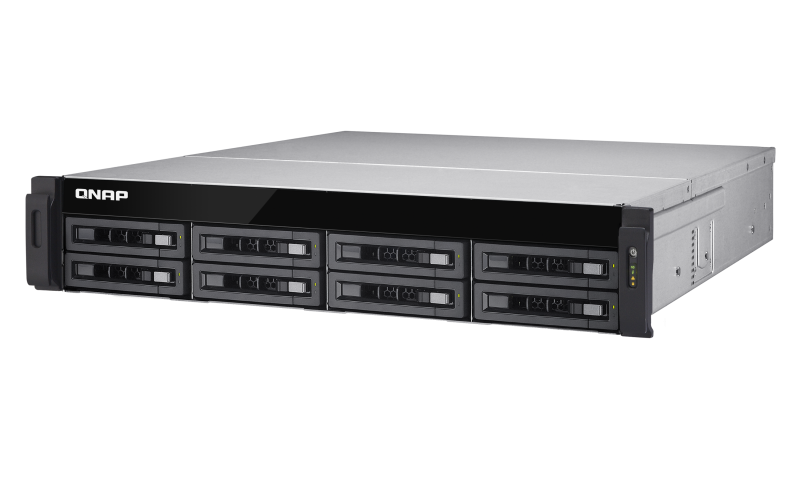

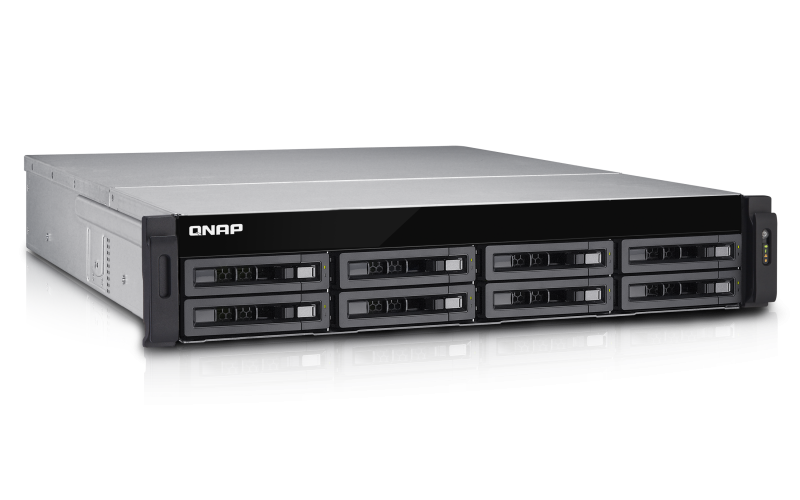

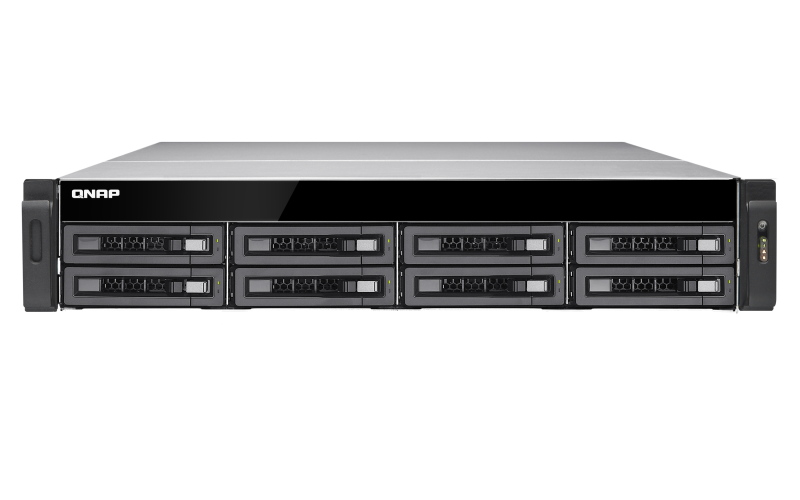

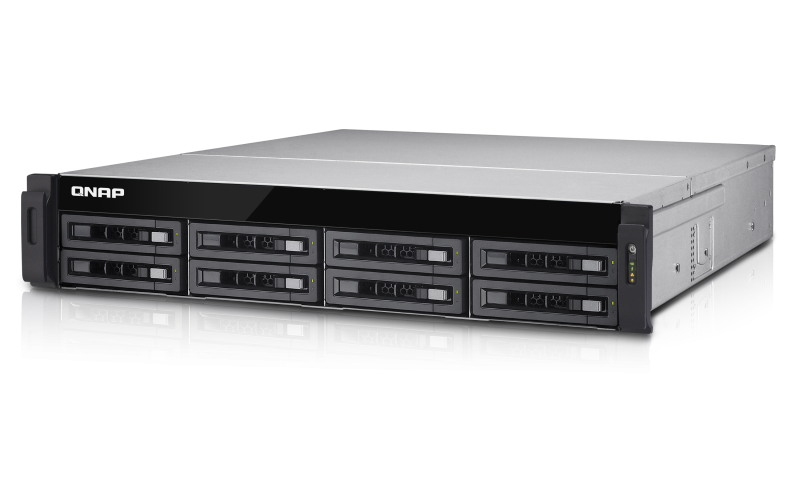

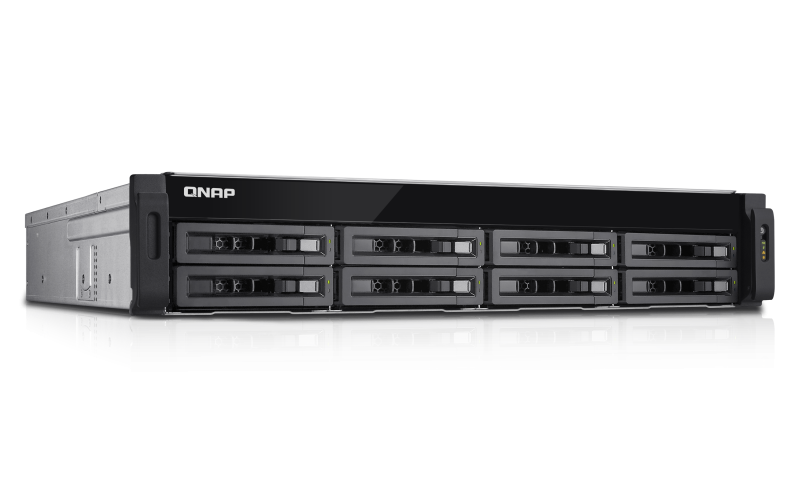

TS-EC880U R2

內建10GbE,專為中小型企業設計的極致效能 8 顆硬碟 NAS 設備、支援 SATA 硬碟

TS-EC880U R2 為堅實可靠的網路儲存系統,具備極致效能、高安全性及高穩定性。TS-EC880U R2 使用簡單易用的 QTS 作業系統,支援 10GbE 網路傳輸、儲存空間彈性擴充,及高規格資料保護機制,是儲存巨量資料、高畫質多媒體檔案,及優化企業效率的可靠 NAS 方案。


● 內建10GbE 高速網路傳輸,適合高畫質影音編輯及分享

● 展現 3,700+ MB/s 吞吐量及 400,000+ IOPS 的極致效能

● 內建 2 個快取埠供 IO 加速,並支援 4 顆 SSD 做快取技術

● 高擴充性,最多可達 136 顆硬碟

● 集中化管理、備份、分享檔案,以及資料災難復原

● 利於 iSCSI 及虛擬化環境部署

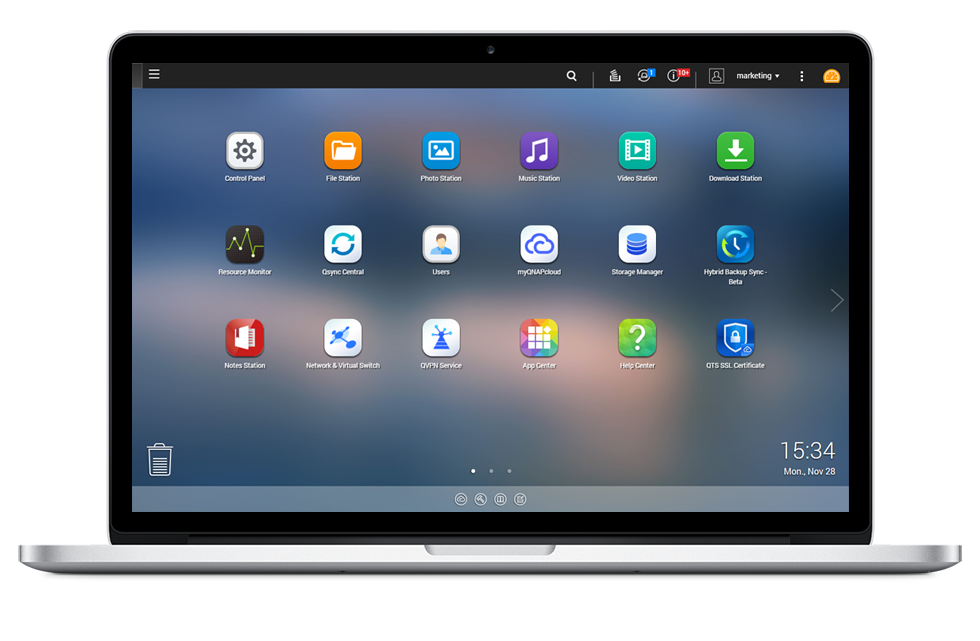

搭載 QTS 作業系統,操作簡單有效率

QTS 直覺式操作介面,讓 TS-EC880U R2 系統操作直覺且容易上手。智能化的桌面提供主選單以快速尋找功能項目;圖形化儀表板方便即時監控系統資源;可拖曳且可群組化的小圖示捷徑供快速存取;快速工具列、多視窗、多重桌面以及多工運作能力,大幅提升操作效率。

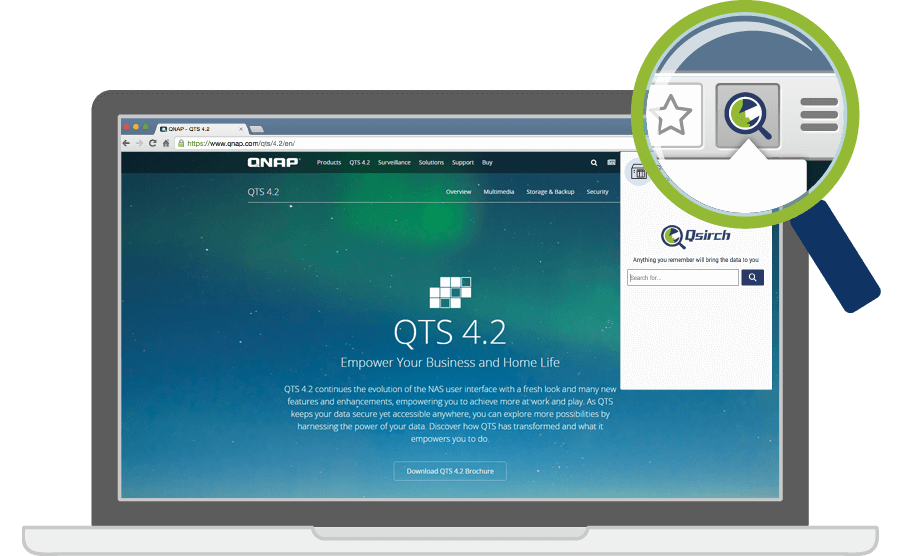

Qsirch 酷先生 – 彈指間搜尋您 NAS 上的資料

QNAP 獨家推出的 NAS 近即時 (Near Real-time) 全文檢索搜尋工具 Qsirch 酷先生,操作上宛如 Google 搜尋引擎一樣簡單直覺,幫助您迅速找到搜尋的文件、照片、影片及音樂,輕鬆無比。只要將任何您記得的關鍵字,包括檔名及內文等輸入搜尋,Qsirch 會以縮圖、前後文摘要、關鍵字標註等預覽方式友善顯示搜尋結果。Qsirch 甚至會自動匯集您曾經搜尋過的紀錄,並成為下一次搜尋的智慧建議。Qsirch 讓資料搜尋越用越有效率,節省您的時間以處理更多任務。

注意:需安裝 2GB記憶體 (推薦安裝 4GB 以上記憶體,以獲得更佳的瀏覽體驗) 及 QTS 4.1 或更新版韌體。

Qsirch

極致效能

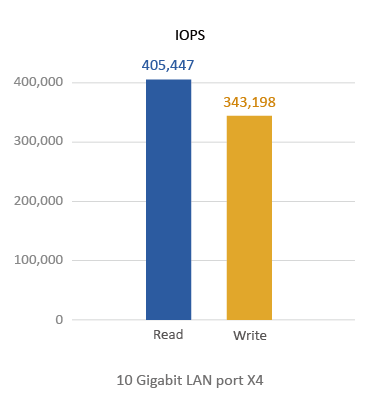

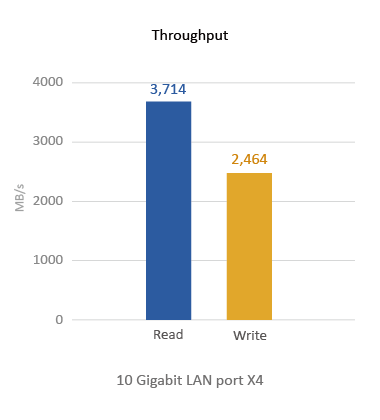

TS-EC880U R2 支援 SATA 6Gbps 硬碟,可提供超過 3,700 MB/s 吞吐量及 400,000 IOPS 的極致效能*。TS-EC880U R2 搭載 Intel® Xeon® E3 v3 四核心處理器以及 4GB DDR3 ECC 記憶體,除了能夠順暢運作需要大量系統資源的任務及應用外,也可同時進行多項資料處理任務。

香港宝典全年免费资料 香港宝典全年免费资料

*測試於 QNAP 實驗室。數據會因實際環境而有所不同。

測試環境: 4 Client PC configurations: Intel(R) Core(TM) i7-2600 CPU, 16GB DDR3 RAM, Windows 7 professional 64-bit, Dual-port Intel X520 10GbE Server Adapter, IOMeter sequential read and write. NAS 設定: OCZ Vertex4 VTX4-25SAT3-128G SSDs with RAID 5 configuration, QNAP LAN-10G2T-X550 dual-port 10GBase-T network adapter*2

內建快取埠,加速 IO 效能

TS-EC880U R2 支援兩個內建 mSATA 快取埠及 4 顆 SSD 作為快取,安裝上 mSATA 快取模組 (可選購),可加速磁碟存取的 IOPS 效能。此功能對於亟需高度 IOPS 效能,如虛擬化的應用,能大幅地改善系統整體運作效率。內建快取埠的設計不會占用硬碟槽,系統內部空間運用更有效率。

*注意:除了在內建快取埠安裝 mSATA,也可在硬碟槽中插入 SSD 固態硬碟,獲得 SSD 快取效能。

香港宝典全年免费资料

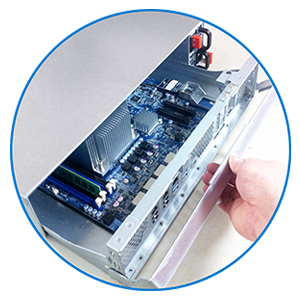

抽取式主板設計便於管理

TS-EC880U R2 擁有可抽取的主板設計,讓 IT 管理者可以更方便地安裝或更換記憶體、內建快取模組及 10GbE 擴充卡等配件,而不必從機架上將沉重的 TS-EC880U R2 整個搬下來。由於主機板可輕易地被抽取出來,對於擁有多個機架設備的資料中心來說, TS-EC880U R2 的管理特別方便。

注意:主板並非熱插拔設計,抽取前,必需先行關機。

香港宝典全年免费资料

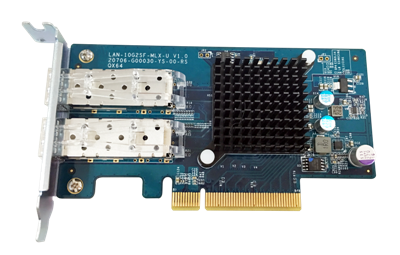

10 Gigabit 高速傳輸

TS-EC880U R2 除原有內建的 4 個 Gigabit 網路埠外,內建 2 個SFP+ 介面 10GbE 網路埠,提供 10GbE 高速傳輸速度。此外,TS-EC880U R2 搭配大儲存容量,也相當適用於視訊影片編輯,用戶可以在電腦上直接快速編輯和儲存 TS-EC880U R2 上的高畫質視訊影片。

知道更多:10GbE solution
香港宝典全年免费资料

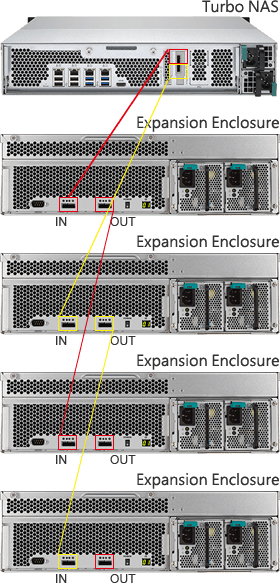

彈性儲存空間擴充

TS-EC880U R2 可串接多台 QNAP RAID 儲存擴充設備 ,不停機即可線上擴充儲存空間,以滿足企業與日俱增的資料儲存需求。對於高資料密集需求產業,如監控影像儲存、巨量資料儲存或電視影音錄影儲存等應用,特別實用。

串接 QNAP 儲存擴充設備可獲得的最大硬碟總數:

Turbo NAS 機種RAID 儲存擴充設備RAID 儲存擴充設備數量硬碟總數 (NAS + 擴充設備)
TS-EC880U R2REXP-1620U-RP8136
7120
6104
588
472
356
240
124
REXP-1220U-RP8104
792
680
568
456
344
232
120


香港宝典全年免费资料

延長保固,享最高 5 年保障

TS-EC880U R2 享有 3 年的免費產品保固。如果需要更長的保固期,您可以購買 QNAP 延長保固服務方案,享有最高 5 年的產品保固期限與超值保障。

香港宝典全年免费资料


TS-EC880U-E3-4GE-R2下载产品规格书
TS-EC880U-i3-4GE-R2下载产品规格书
TS-EC880U-i3-8G-R2下载产品规格书
處理器Intel® Xeon® E3-1245 v3 四核心 3.4 GHz 處理器、E3-1246 v3 四核心 3.5 GHz 處理器或相容的 E3-1200 v3 家族處理器
處理器架構64 位元 x86
浮點運算支持
加密引擎 (AES-NI)
系統記憶體4 GB DDR3 ECC RAM
最大記憶體32 GB (4 x 8 GB)
記憶體插槽4 個 DDR3 Long-DIMM
當記憶體擴充至 28GB 以上時,需移除原本的 4GB 記憶體模組。
記憶體模組的安裝及 NAS 機型的相容性說明請參考 QNAP RAM 模組安裝手冊
快閃記憶體512 MB (DOM 適用於雙 OS)
硬碟插槽數8 個 3.5 吋 SATA 6Gb/s、3Gb/s
支援硬碟類型3.5 吋 SATA 硬碟
2.5吋 SATA 硬碟
2.5 吋 SATA 固態硬碟
熱插拔支援
mSATA 插槽2 個
(mSATA 快閃記憶體模組為選購配備)
固態硬碟快取加速支援硬碟 1、2、3、4
Gigabit 乙太網路埠 (RJ45)4
10 Gigabit 乙太網路埠2 個 10GbE SFP+
巨幀封包支持
PCIe 擴充槽2
插槽 1:PCIe Gen 3 x8
插槽 2:PCIe Gen 3 x4
PCIe Gen3 (x8) 插槽已安插 10GbE 網路擴充卡
USB 2.0 埠4
USB 3.2 Gen 1 port4
HDMI 輸出1
機型2U 機架式
LED 指示燈硬碟 1-8、狀態、10 GbE、網路、儲存空間擴充埠狀態
按鈕電源、系統重置
尺寸 (高x寬x深)88 × 442.5 × 530.5 mm
重量 (淨重)14.39 kg
重量 (毛重)20.54 kg
工作溫度0 - 40 °C (32°F - 104°F)
相對濕度5~95% RH (不凝結),濕球:27˚C (80.6˚F)
電源供應器備援 / 熱抽換 ATX 電源供應器,輸入:
47-63 Hz
100-127V~/ 8A
200-240V/ 4A
輸出:400W
耗電量:硬碟休眠模式73.38 W
耗電量:運作模式,典型值133.88 W
含 8 顆 1TB 硬碟
風扇4 個智慧型風扇 (60mm)
噪音值55.2 db(A)
系統警示蜂鳴器
同時連線 (CIFS) 數目上限1500
注意:請僅使用 QNAP 記憶體模組來維持系統的效能與穩定性。若 NAS 裝置有多個記憶體模組,請使用相同規格的 QNAP 模組。
警告:使用不支援的模組可能會降低效能、造成錯誤,或使作業系統無法啟動。
* 噪音值測試環境:
參考標準: ISO 7779 ; 依 Bay 數裝載最多數量硬碟 ; 以 Bystander Position 測量 ; 取機器運行中前方一米處平均數據
威聯通科技得保留隨時修改的權利,恕不另行通知。


Operating SystemQTS (QNAP Turbo NAS System)Disk ManagementQNAP Flexible volumeThin-provisioning with space reclamation supportedOnline Volume ExpansionOnline Storage Pool Expansion (via QNAP RAID expansion enclosure)Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 50, 60RAID Hot Spare and Global Hot SpareOnline RAID Capacity Expansion and Online RAID Level MigrationBad Block Scan and Hard Drive S.M.A.R.T.Bad Block RecoveryRAID RecoveryBitmap Support
Supported ClientsApple Mac OS 10.7 or laterLinux and UNIXMicrosoft Windows 7, 8, and 10Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016Power ManagementWake on LAN*Internal Hard Drive Standby ModeScheduled Power on/offAutomatic Power on after Power RecoveryUSB and Network UPS Support with SNMP Management
Supported BrowsersMicrosoft Internet Explorer 10+Mozilla Firefox 8+Apple Safari 4+Google ChromeAccess Right ManagementBatch Users CreationImport/Export UsersUser Quota ManagementLocal User Access Control for CIFS, AFP, FTP, and WebDAV,Subfolder Permissions Support for CIFS/SMB, AFP, FTP, and Web File Manager
Multilingual SupportChinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, TurkishDomain Authentication IntegrationMicrosoft Active Directory (AD)LDAP ServerLDAP ClientDomain Users Login via CIFS/SMB, AFP, FTP, and File Station
File SystemInternal Hard Drive: EXT4External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+Web AdministrationMulti-window, Multi-tasking based System ManagementMovable Icons and Personalized DesktopSmart Toolbar and Dashboard for Neat Display on System StatusSmart Fan ControlDynamic DNS (DDNS)SNMP (v2 & v3)Resource MonitorNetwork Recycle Bin for File Deletion via CIFS/SMB and AFPAutomatic CleanupFile Type FilterComprehensive Logs (Events & Connection)Syslog ClientFirmware Live UpdateSystem Settings Backup and RestoreRestore to Factory DefaultMobile App Qmanager for Remote Monitoring
NetworkingTCP/IP (IPv4 & IPv6: Dual Stack)Quad Gigabit NICs with Jumbo Frame*FailoverMulti-IP SettingsPort Trunking/NIC Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-TLB and Balance-ALB)Optional Dual-port 10 GbE and 1 GbE Network Expansion Cards*Service Binding Based on Network Interfaces*Proxy Client, Proxy ServerDHCP Client, DHCP ServerProtocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSCUPnP & Bonjour DiscoveryUSB Wi-Fi Adapter SupportFile ServerFile Sharing across Windows, Mac, and Linux/UNIXProtocols: CIFS/SMB, AFP, NFS, FTP/FTPS, HTTP/HTTPS (Web File Manager), WebDAVWindows ACLAdvanced Folder Permission for CIFS/SMB, AFP, FTPShared Folder Aggregation (CIFS/SMB)
SecurityIP Filter & Policy-based Automatic IP BlockingNetwork Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFPEncrypted Access: HTTPS, FTP with SSL/ TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rsync over SSH)CIFS Host Access Control for Shared FoldersAntivirus ProtectionAES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)**AES 256-bit External Drive Encryption*Importable SSL CertificateInstant Alert via E-mail, SMS, Beep, and LCD Panel*File StationSupports ISO Mounting (Up to 256 ISO Files)Creates and Sends Download Links for Sharing Public Files with Expiration Time and Password ProtectionDrag-n-drop Files via Chrome and Firefox BrowsersPhoto, Music, and Video Preview and Playback Empowered by Built-in Transcoding TechnologyFile Compression (ZIP or 7z)Advanced SearchMobile App: Qfile for File Browsing and Management
Powerful All-in-one server
FTP ServerFTP over SSL/TLS (Explicit)Concurrent Connections: Max 256Passive FTP Port Range ControlFTP Bandwidth & Connection ControlSupports FXP & UnicodeSyslog ServerCentralized Log Monitoring and ArchivingImmediate Email AlertsSupports Log Filtering
Backup StationRemote Replication Server (over Rsync)Real-time Remote Replication (RTRR) to another QNAP NAS or FTP ServerWorks as Both RTRR Server & Client with Bandwidth ControlReal-time & Scheduled BackupEncryption, Compression, File Filter, and Transfer Rate LimitationEncrypted Replication between QNAP NAS ServersDesktop Backup by QNAP NetBak Replicator for WindowsApple Time Machine Support with Backup ManagementData Backup to Multiple External Storage DevicesSynchronizes with Cloud Storage: Amazon S3, ElephantDrive, Dropbox, and Google Cloud StorageThird Party Backup Software Support: Veeam Backup & Replication, Acronis TrueImage, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc.Print ServerMax No. of Printers: 3Supports Internet Printing ProtocolPrint Job Display and ManagementIP-based and Domain Name-based Privilege ControlSupports Apple Bonjour Printing
iSCSI (IP SAN)iSCSI TargetMulti-LUNs per TargetUp to 256 Targets/LUNs CombinedSupports LUN Mapping & MaskingBlock-based LUNThin-provisioned LUN with Space Reclamation supportedOnline LUN Capacity ExpansionSupports SPC-3 Persistent ReservationSupports MPIO & MC/SiSCSI LUN Backup, One-time Snapshot, and RestoreiSCSI Connection and Management by QNAP Finder (Windows)Virtual Disk Drive (via iSCSI Initiator)Stack Chaining MasterMax No. of Virtual Disk Drives: 8Database ServerBuilt-in MySQL ServerWeb-based Management via phpMyAdmin
Server Virtualization & ClusteringVMware vSphere (ESX/ESXi 4.x, 5.x)VMware VAAI for iSCSI and VAAI for NASvSphere Plug-inCitrix XenServer (6.0)Windows Server 2012 Hyper-VSupports Microsoft ODXQNAP SMI-S provider for Microsoft SCVMMWindows Server 2012 Failover ClusteringRADIUS ServerCentralized Account Management and Authentication for Network AccessSupports 802.1x Security AuthenticationTFTP Server with PXE Booting (Read-only)
Virtualization StationSupport up to 8 Virtual Machine (32GB RAM is required) creating to run an operating system such as Windows, Linux, Unix.VM import from Virtual AppliancesVM export into a virtual appliance in OVF / QVM formatVM cloneVM snapshotHTML5 based shared remote consoleVPN ServerSecure Remote Access: PPTP & OpenVPN VPN servicesRemote Access to Other Resources on Local NetworkMax No. of Clients: 300
Storage Plug & Connect via Windows Qfinder Pro by QNAPCreate and Map Shared FoldersCreate and Connect to iSCSI Target/LUNSurveillance StationSupports over 1,400 IP CamerasIncludes 8 Free Camera LicenseUp to 80 Camera Channels via Additional License Purchase*Intelligent Video Analytics (IVA) for Advanced Video SearchVisual Aid by E-mapSurveillance Client for MacMobile App: Vmobile (iOS and Android)
myQNAPcloud ServicePrivate Cloud Storage and SharingFree Host Name Registration (DDNS)Auto Router Configuration (via UPnP)myQNAPcloud Link for Remote Access without Complicated Router SetupmyQNAPcloud Connect for Easy VPN Connection (Windows VPN Utility)AntivirusSupports ClamAV (free) and McAfee (optional purchase ) virus scanner.Protection against Viruses, Trojans, and Other ThreatsFree Virus Databases Update on Manual or Scheduled BasisMultiple Scan Tasks (Max: 64, Concurrent: 5) with Custom Folder Selection and Scheduled ScanningEmail Notification upon Task Completion or Virus DetectionQuarantines or Deletes Infected Files
QsyncSyncs Files among Multiple Devices through the NASOption for Not Removing Files on the NAS during SynchronizationSelective SynchronizationShares Securely with SSLTeam FolderShares Files by Links via E-mailUploads Photos or Videos to Qsync Folder Automatically via QfileRestores Files from Network Recycle BinFile Name Conflict PolicyOption for Filter SettingsPrivilege Control for Qsync UsersSupports Windows & Mac OSAPP CenterAdd New Features by Online Installation of over 90 Official and Community Software
Web ServerHTTP/HTTPS ConnectionsSupports WebDAV ConnectionSupports Virtual Host (Max: 32)Importable SSL CertificateAdd-ons(The actual available software add-ons may vary depending on the NAS platform)

* This feature may vary according to different models.
**  The data encryption functions may not available in accordance with the legislative restrictions of some countries.

Design and specifications are subject to change without notice.


香港宝典全年免费资料香港宝典全年免费资料香港宝典全年免费资料
TS-EC880U R2Ethernet cable x 4Power cord x 2
香港宝典全年免费资料香港宝典全年免费资料香港宝典全年免费资料
Flat head screw x 32 (for 3.5" HDD)Flat head screw x 32 (for 2.5" HDD)Quick Installation Guide
