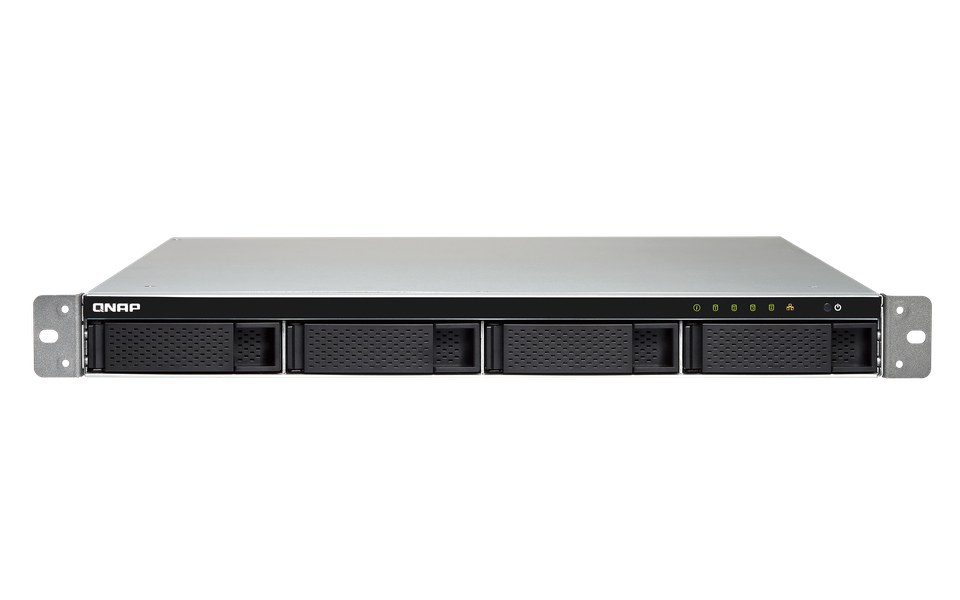

TS-431XeU

四核心1.7GHz

购买


TS-431XeU-2G
下载产品规格表


TS-431XeU-2G下载产品规格表


CPUAnnapurnaLabs Alpine AL314 32-bit ARM® Cortex-A15 4-core 1.7GHz processor
CPU 架构32 位 ARM
浮点运算支持
加密引擎支持
系统内存2 GB SODIMM DDR3 (1 x 2 GB)
内存上限8 GB (1 x 8 GB)
内存插槽1 个 SO-DIMM DDR3
闪存512 MB(双引导操作系统保护)
硬盘插槽数4 个 3.5 英寸 SATA 6Gb/s、3Gb/s
支持硬盘类型3.5 英寸插槽:
3.5 英寸 SATA 硬盘
2.5 英寸 SATA 硬盘
2.5 英寸 SATA 固态硬盘
支持热拔插支持
支持SSD 快取加速支持
Gigabit 以太网络端口 (RJ45)2
10 Gigabit 以太网络端口1 个 10GbE SFP+
网络唤醒 (WOL)支持
巨帧封包支持
USB 3.2 Gen 1 端口4
外形尺寸1U 机架式
LED 指示灯HDD 1-4、状态、USB、网络 1-3
按钮电源、系统重置
尺寸 (高 x 宽 x 深)44 × 439 × 291 mm
重量 (净重)4.15 kg
重量 (总重)5.78 kg
工作温度0 - 40 °C (32°F - 104°F)
存储温度-20 - 70°C (-4°F - 158°F)
相对湿度5-95% RH (不凝结),湿球:27˚C (80.6˚F)
电源供应器开放式 100W,输入:100V-240V ~ / 3.5A,50Hz-60Hz
耗电量:硬盘休眠模式12.42 W
耗电量:工作模式,典型值30.99 W
通过硬盘满载测试。
风扇系统风扇:3 个 (40mm),12VDC
系统警示蜂鸣器
Kensington 安全插槽支持
Max. Number of Concurrent Connections (CIFS) - with Max. Memory400


Operating System

QTS (嵌入式Linux)

Supported Client Operating Systems
  1. Apple Mac OS 10.10 or later

  2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux

  3. IBM AIX 7, Solaris 10 or later UNIX

  4. Microsoft Windows 7, 8, 10 and 11

Show more...
Supported Browsers
  1. Apple Safari (latest version)

  2. Google Chrome (latest version)

  3. Microsoft Edge (latest version)

  4. Mozilla Firefox (latest version)

Supported Languages

Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

Storage Pool支持
SED Storage Pool支持
Maximum Pool size

308 TB

Maximum number of storage pool

128

Volume Type

Thick, Thin, Static

Maximum volume size

250 TB

Note: At least 4 GB RAM is required.

Maximum number of volume

128

Maximum shared folder size

250 TB

Maximum number of shared folder

512

JBOD Expansion支持
VJBOD / VJBOD Cloud支持
iSCSI Service支持
Fibre Channel Service支持
LUN Type

Thick, Thin

File-based iSCSI LUN支持
Block-based iSCSI LUN支持
Maximum LUN size

250 TB

Note: At least 4 GB RAM is required.

Maximum number of targets LUN

256

LUN feature
  1. LUN Mapping (LUN can be moved between iSCSI and FC)

  2. LUN Masking

  3. WWPN Aliases Import/Export

  4. FC Port Group

Show more...
RAID Type
  1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60

  2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50

  3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10

  4. 2-bay: JBOD, Single, RAID 0, 1

RAID Group

To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.

RAID Level Migration支持
RAID Expansion (by adding Disk)支持
RAID Expansion (by replacing bigger Disks)支持
Storage Pool Expansion (by adding RAID Group)支持
RAID Hot Spare

Global, Local

RAID Sync/Rebuild/Scrubbing支持
Internal drive

EXT4

External drive

EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.

Disk, Enclosure Locate支持
Disk S.M.A.R.T. Scan支持
Disk S.M.A.R.T. Data Migration支持
Ironwolf Health Management支持
Secure Erase支持
SSD Trim支持
SSD Life Estimation支持
Disk Roaming支持
Disk Standby<span style="color: rgb(51, 51, 51); font-size:
香港宝典全年免费资料香港宝典全年免费资料香港宝典全年免费资料
TS-431XeU以太网络线缆 x 2电源线 x 1
香港宝典全年免费资料香港宝典全年免费资料香港宝典全年免费资料
十字螺丝 x 16 (适合 3.5 吋硬盘)十字螺丝 x 12 (适合 2.5 吋硬盘)快速安装手册 (QIG)
香港宝典全年免费资料香港宝典全年免费资料
挂耳 x 2挂耳把手 x 2
